On the Windows machine, open a Command Prompt window and execute the IPCONFIG command.
Make a note of your IP address for later reference.
On the Windows machine, if Wireshark is running, close it.

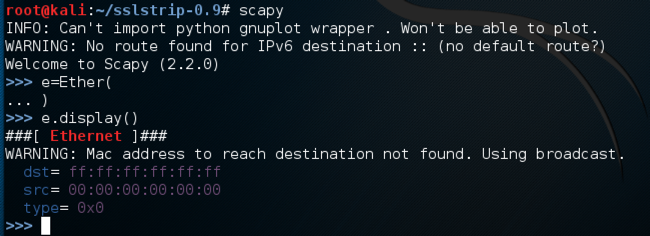

scapy
e = Ether()
e.display()
The ethernet frame is addressed to the layer 2 broadcast address of
ff:ff:ff:ff:ff:ff,
as shown below on this page.
Now we will add the upper layers to the packet.

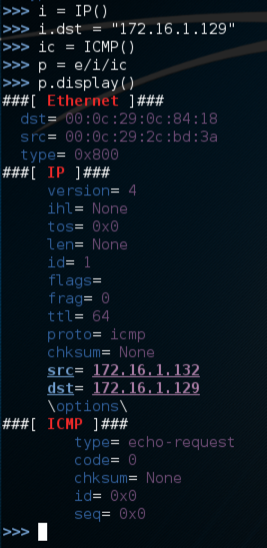

On the Linux machine, in scapy, enter these commands. Use the IP address of your Windows target machine in the second command:
i = IP()
i.dst = "192.168.198.139"
ic = ICMP()
p = e/i/ic
p.display()
All three layers are shown. Notice that the MAC address has been
changed to the correct value,
as shown below on this page.

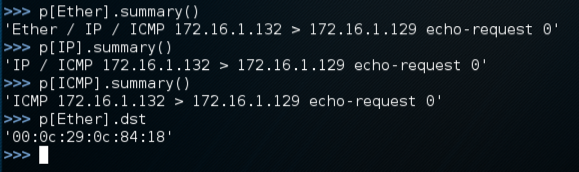

You can reference each layer of the packet named "p" by putting the protocol in square brackets:
On the Linux machine, in scapy, enter these commands:
p[Ether].summary()
p[IP].summary()
p[ICMP].summary()
p[Ether].dst
You see each layer seperately, and then the destination
MAC address,
as shown below on this page.

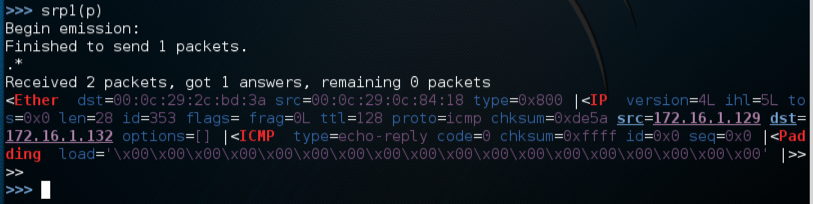

Now we will send the packet, using srp1, which sends at layer 2 and gets one packet in return.
On the Linux machine, in scapy, enter this command:
srp1(p)
You should get a reply,
as shown below on this page.

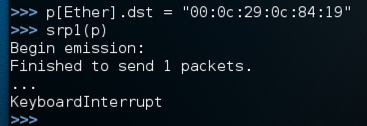

On the Linux machine, in scapy, enter these commands. In the second command, use the real MAC address of your Windows machine plus 1:
p[Ether].dst = "00:50:56:24:3b:c1"
srp1(p)
You should get no reply,
as shown below on this page.
Cancel the waiting process with Ctrl+C.

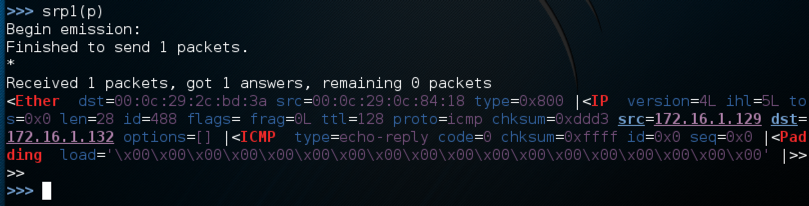

On the Windows machine, start Wireshark, click Capture, Interfaces and begin capturing packets from the interface that goes to your LAN. This places your NIC in promiscuous mode.
srp1(p)
You should get a reply this time,
as shown below on this page.
This shows that the NIC is running in promiscuous mode.

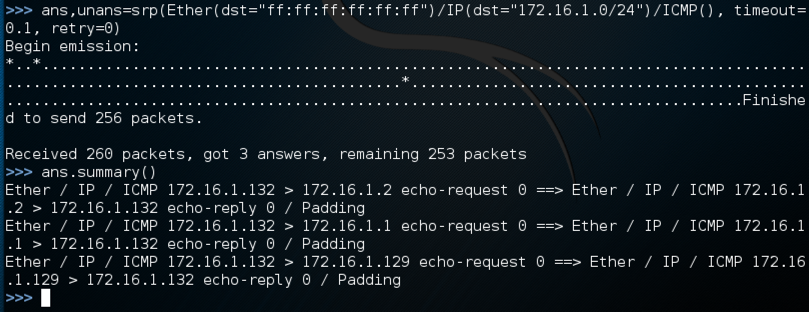

ans,unans=srp(Ether(dst="ff:ff:ff:ff:ff:ff")/IP(dst="192.168.198.0/24")/ICMP(),
timeout=0.1, retry=0)
ans.summary()
The first command scans an entire /24 network (254 addresses) and places the
reply packets in a list named "ans".
The second command shows a summary of the packets in "ans". I had three machines on my LAN: the Kali Linux attacker, the Windows target, and the Mac OS X host. So I got three "echo-reply" packets, as shown below on this page.

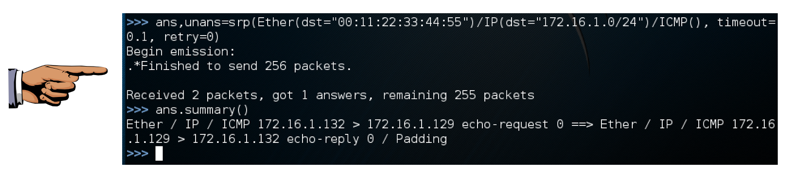

ans,unans=srp(Ether(dst="00:11:22:33:44:55")/IP(dst="192.168.198.0/24")/ICMP(),
timeout=0.1, retry=0)
ans.summary()
Now only one machine answers
as shown below on this page.
Save a screen image with the filename Proj X11 from Your Name.
Email the image to cnit.123@gmail.com with a Subject line of Proj X11 from Your Name.
