How to Earn IPv6 Certifications (Windows Version) Part 2

Do Part 1 First

In part 1, you got these services running:

Web client
Web server
Email server

You now have a Hurricane Electric IPv6 Certification level of Administrator.

The rest of the process requires you to set up your DNS records correctly. You could set up your own DNS server, but you can use public DNS services also, and that's how these instructions do it.

We used GoDaddy's DNS for Part 1, but I can't get the Reverse DNS to work using GoDaddy's DNS service, so for the rest of the process you will be using Hurricane Electric's DNS service.

Examining your DNS Records

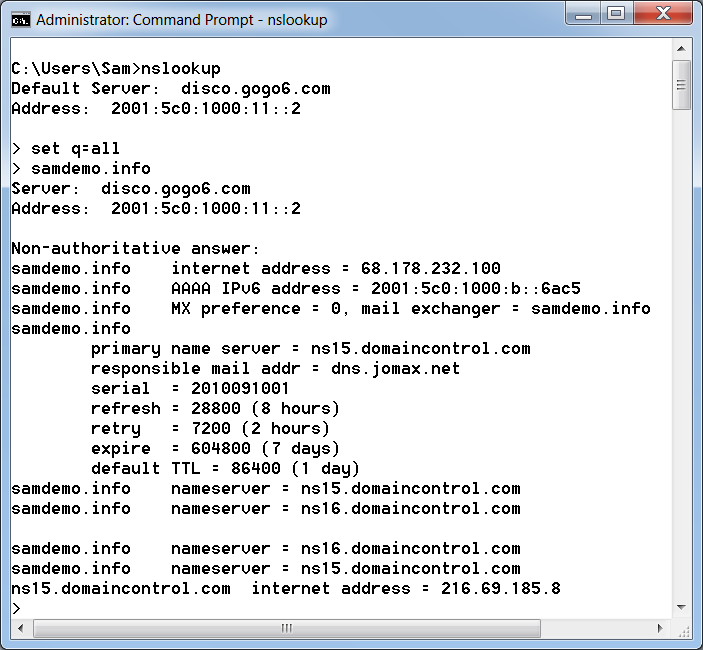

Open a Command Prompt window. Type in these commands:

nslookup set q=all yourdomain.info

Replace yourdomain.info with your domain name. You should see your DNS records, as shown below on this page.

You should see these items:

AAAA record pointing to your Local Endpoint IPv6 Address
MX record pointing to your domain name
nameserver records pointing to GoDaddy servers, in the "domaincontrol.com" domain

In the Command Prompt window, type this command:

exit

This exits from interactive nslookup and returns you to a normal prompt.

Reverse DNS

Forward DNS lookups are the normal ones, that start with a domain name like samdemo.info and look up an IPv6 address like 2001:5c0:1000:b::6ac5.

Reverse DNS starts with the IPv6 address and looks up the domain name. This is a common test performed by email servers, to detect spammers. If a domain name doesn't resolve with reverse DNS, that indicates that there is something suspicious about the mail server, and some email servers will refuse to accept the mail.

Checking your Reverse DNS Resolution

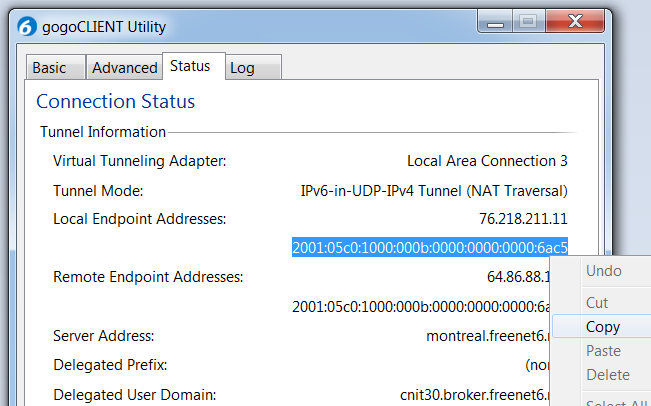

Click Start, type in gogo, and click "gogoCLIENT Utility". In the gogoCLIENT Utility, click the Status tab. Highlight your "Local Endpoint Address", right-click the highlighted address, and click Copy, as shown below on this page.

Open a Command Prompt window. Type in this command, and then press the Enter key:

nslookup

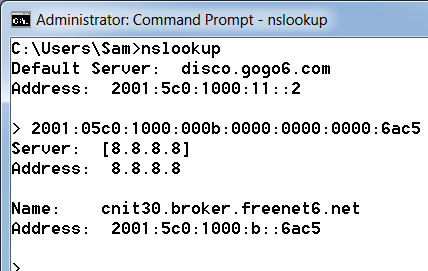

On the next line of the Command Prompt window, right-click and click Paste. That should put your IPv6 address in the Command Prompt window. Press the Enter key. You should see your Reverse DNS Resolution as shown below on this page.

This isn't good. Your MX server is yourdomain.info, but your reverse DNS resolves to something ending in "broker.freenet6.net". That makes you look like a spammer to mail servers.

Adjusting the gogoCLIENT Configuration

There are two changes needed here: Reverse DNS Servers and Routing Advertisements.

Reverse DNS Servers

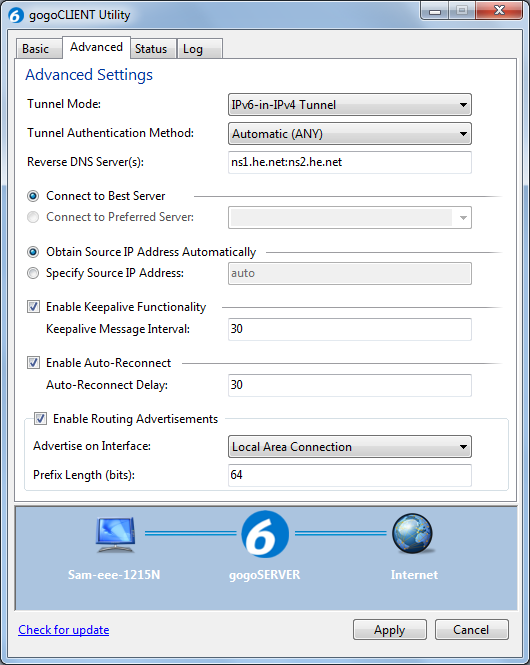

In the gogoCLIENT Utility, click the Advanced tab. In the "Reverse DNS Server(s) field, enter

ns1.he.net:ns2.he.net

Routing Advertisements

In the gogoCLIENT Utility, click the Advanced tab. At the bottom, check the "Enable Routing Advertisements" box. In the "Advertise on Interface" drop-down box, select "Local Area Connection" or whatever interface you are using to connect to the Internet.

This setting tells Freenet6 that you are not just a single computer, but a router for a network. So Freenet gives you a dedicated IPv6 prefix. This is a real, publicly routed Internet address block, with an incredible number of addresses for you to use--each person who requests it gets more addresses than the entire IPv4 address space for their own use.

In the gogoCLIENT Utility, click the Basic tab. Click the Disconnect button. Click the Connect button. In the "Save changes before connecting?" box, click Save.

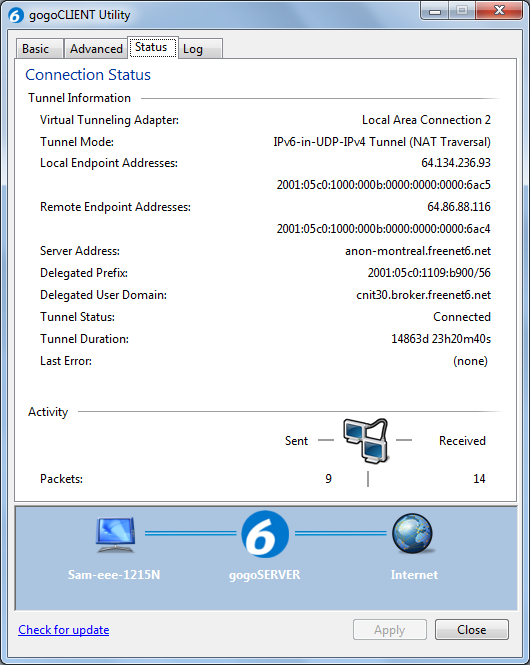

In the gogoCLIENT Utility, click the Status tab. You should see your "Delegated Prefix", as shown below on this page.

Finding Your New IPv6 Address

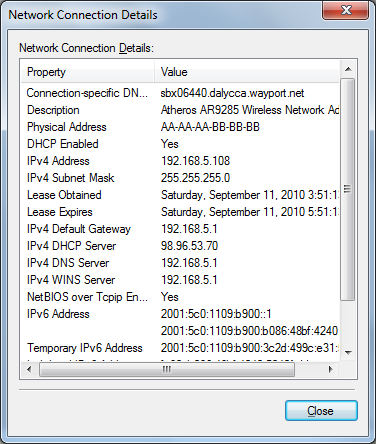

On your Windows desktop, click Start. In the Search box, type NETWORK CONNECTIONS and click "View Network Connections" in the results section. Double-click "Local Area Connection". In the "Local Area Connection Status" box, click the Details button. You should see your IPv6 address, which is your assigned prefix followed by ::1, as shown below on this page.

Configuring a DNS Zone at Hurricane Electric

In Firefox, go to dns.he.net

On the upper left, log in with the account you are using for the IPv6 Certification tests.

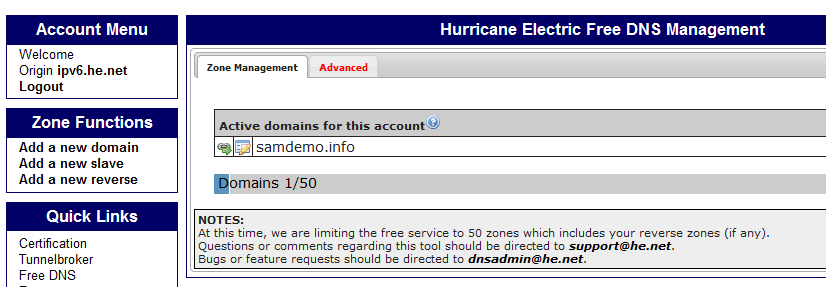

On the left, click "Add a new domain" In the "Domain Name" box, type your domain name. Click the "Add Domain! button. Your domain appears in the "Active domains for this account" list, as shown below on this page.

Now you need to add some records to your zone. Click the little pencil-and-paper icon just to the left of your domain name.

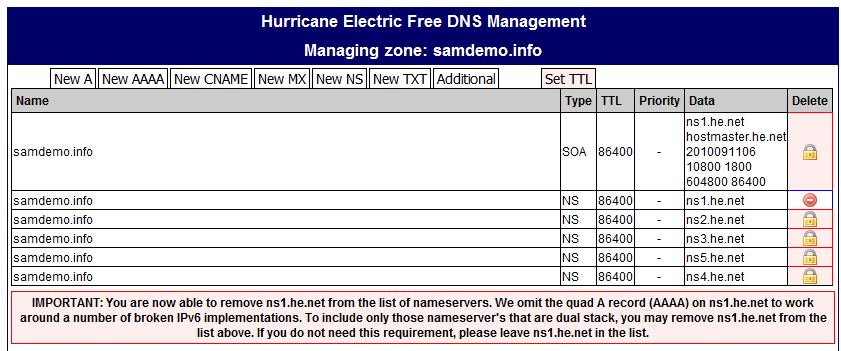

A page opens with a chart titled "Hurricane Electric Free DNS Management Managing zone:", as shown below on this page.

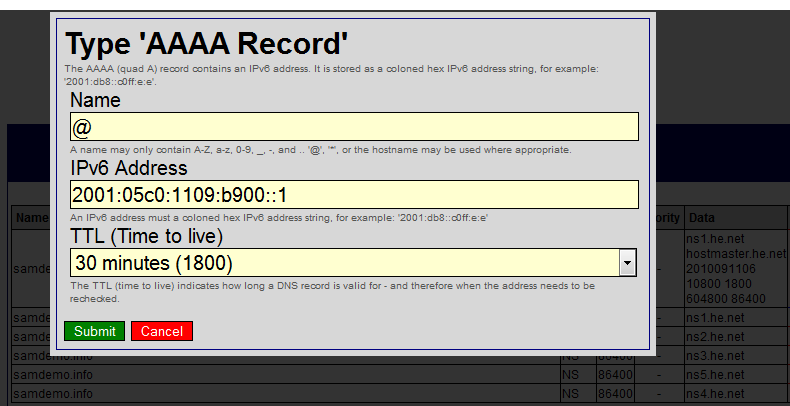

Click the "New AAAA" tab. In the box that appears, enter a Name of @ and an "IPv6 Address" of your interface's IPv6 address. Set the TTL to 30 minutes, as shown below on this page. Click the Submit button.

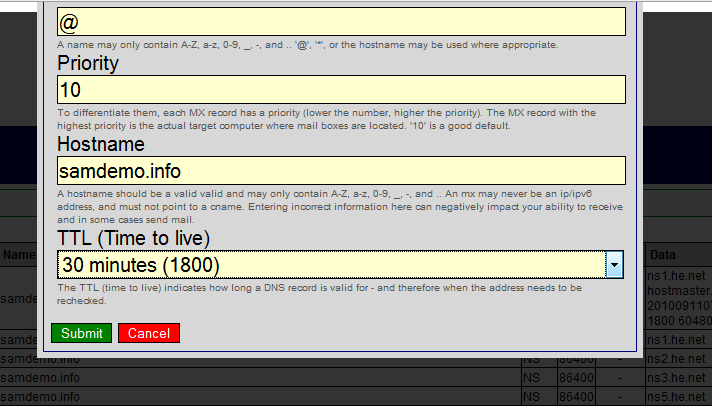

Click the "New MX" tab. In the box that appears, in the top field, enter @

In the "Priority" field, enter 10

In the "Hostname" field, enter your domain name.

Set the TTL to 30 minutes, as shown below on this page. Click the Submit button.

Configuring a Reverse DNS Zone at Hurricane Electric

On the left side of the "Hurricane Electric Free DNS Management" page, click "Return to main".

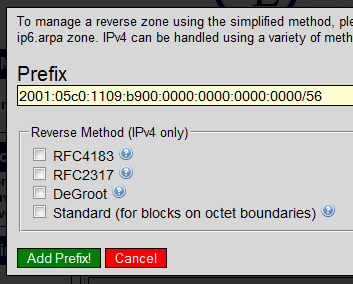

On the left, click "Add a new reverse" In the "Prefix" box, type your IPv6 Prefix. You will have to add :0000:0000:0000:0000 to the end of your prefix, as shown below on this page. Click the "Add Prefix! button.

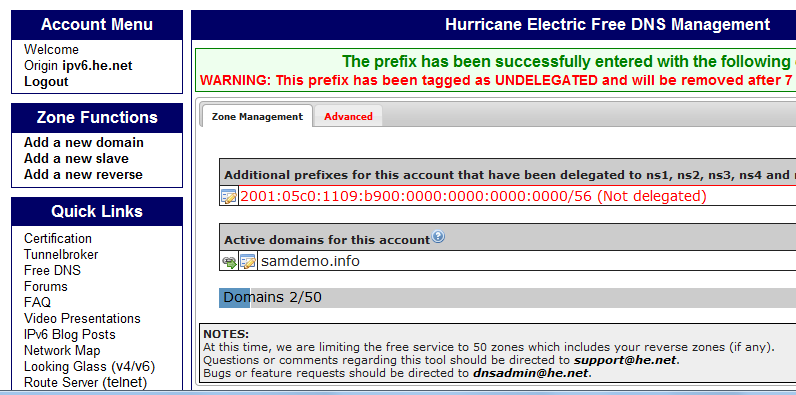

The prefix now appears in the "Hurricane Electric Free DNS Management" page, as shown below on this page. Click the "Add Prefix! button.

Click the little pencil-and-paper icon just to the left of your prefix.

A page opens with a chart titled "Hurricane Electric Free DNS Management Managing zone:", as shown below on this page.

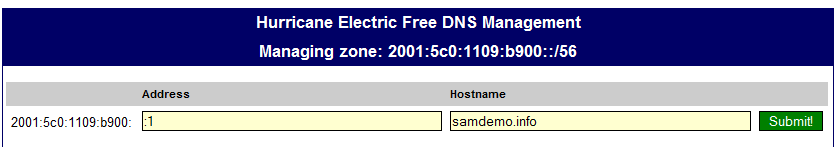

Enter a "Host Address" of :1 Type your domain name into the "Hostname" field. Click the Submit! button.

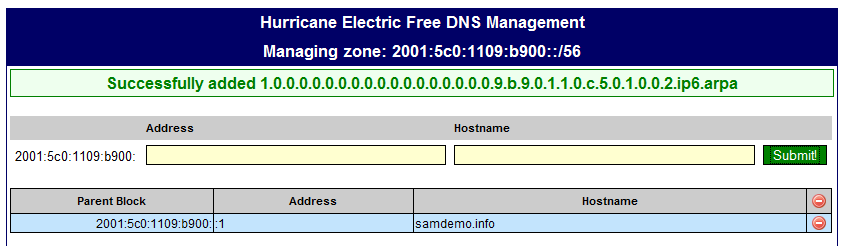

A message appears saying "Successfully added...", as shown below on this page. The reverse DNS record has a long name with your complete IPv6 address in it backwards.

Changing your DNS Servers at GoDaddy

In Firefox, go to http://godaddy.com. On the left side, click "Domains". Wait a second for the gray "Manage" button to appear, and click it. Log in. Click "Domain manager".

You should see a list of your domains, as shown below on this page. On the row with the domain name you registered earlier, click the round button with a yellow D on it.

godaddy-domains (3K)

Click Nameservers.

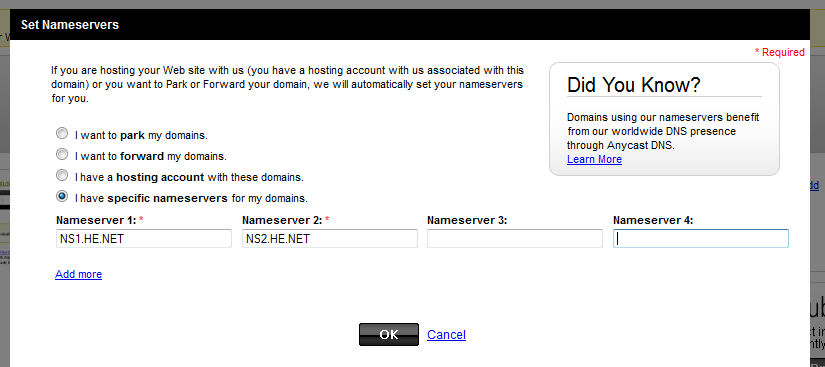

On the next page, change the first two nameservers to NS1.HE.NET and NS2.HE.NET, as shown below on this page. Leave the others blank. Click the OK button. A message appears saying "Your changes have been submitted...". Click the OK button.

Testing Your Reverse DNS Configuration at Hurricane Electric

In Firefox, go to http://ipv6.he.net/certification/ and log in.

In the Professional section, in the "Check if your mail server has working rDNS" line, click the -> button.

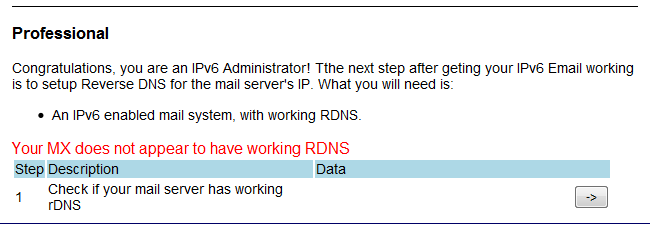

If you get a red "Your MX does not appear to have working RDNS" message, as shown bwlow on this page, it probably means that your DNS records have not yet propagated to the DNS server used by the test. You may have to wait a few hours. You can test your DNS to see when it updates, as explained below.

Testing Forward DNS Records

Open a Command Prompt window. Type in these commands:

nslookup set q=all yourdomain.info

Replace yourdomain.info with your domain name.

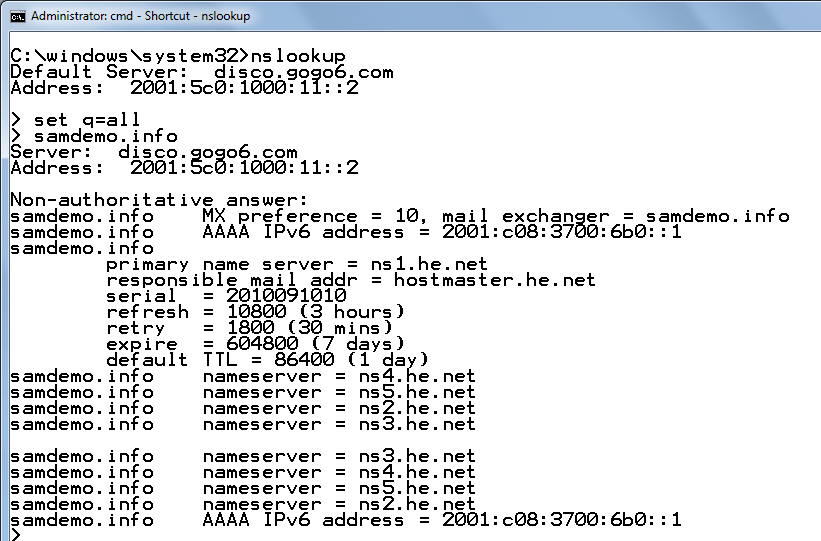

When I tried it, the AAAA record was still pointing to an old address, as shown below on this page.

Testing Reverse DNS Records

In a Command Prompt window. if nslookup is still running, type EXIT and press the Enter key to stop it.

Type in these commands:

nslookup 2001:5c0:1109:b900::1

Replace 2001:5c0:1109:b900::1 with your IPv6 address.

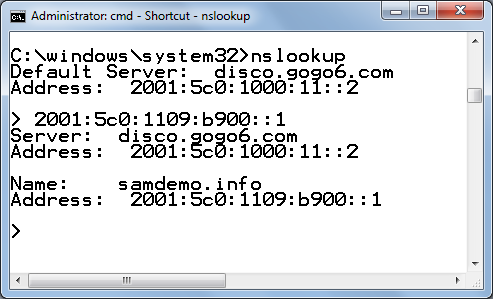

If your reverse DNS is working correctly, you will see your domain name in the answer section, as shown below on this page.

Passing the Reverse DNS Test

When you pass the test, the "Professional Questionnaire" appears. Fill it out.

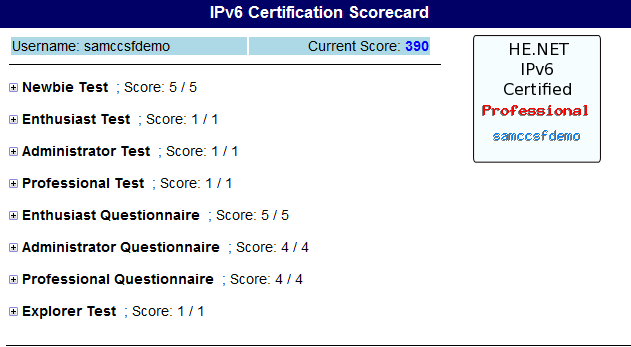

You should now be a Professional, with a badge like the one shown below on this page. Click the badge to see your score: it is now 390, worth 39 points in any of my CCSF classes.

Passing the Guru Test

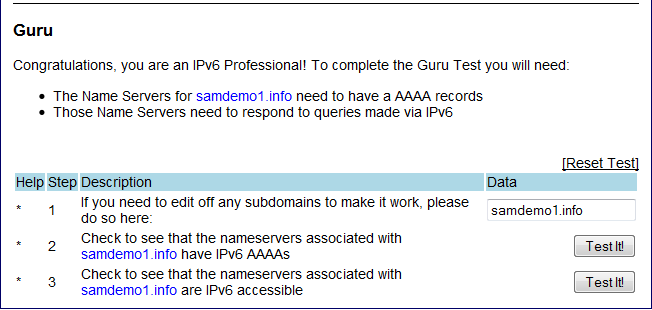

The Hurricane Electric Certification test now shows the Guru test, as shown below on this page. These tests determine if your namesevers are properly using IPv6, which they obviously are, since you are using the Hurricane Electric nameservers. Just click the two "Test It!" buttons. Then complete the questionnaire and you are a Guru.

Passing the Sage Test

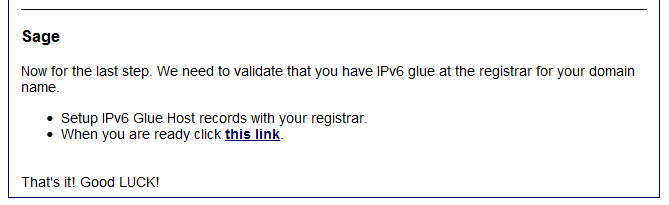

The Hurricane Electric Certification test now shows the Sage test, as shown below on this page. This determines if your domain name registrar put an IPv6 glue record on the root domain servers. GoDaddy does that for you. Just click the two "this link" link. On the next page, click the Submit button. On the next page, scroll to the bottom and click the Submit button. A message says "Nothing to do here."

Viewing Your Score

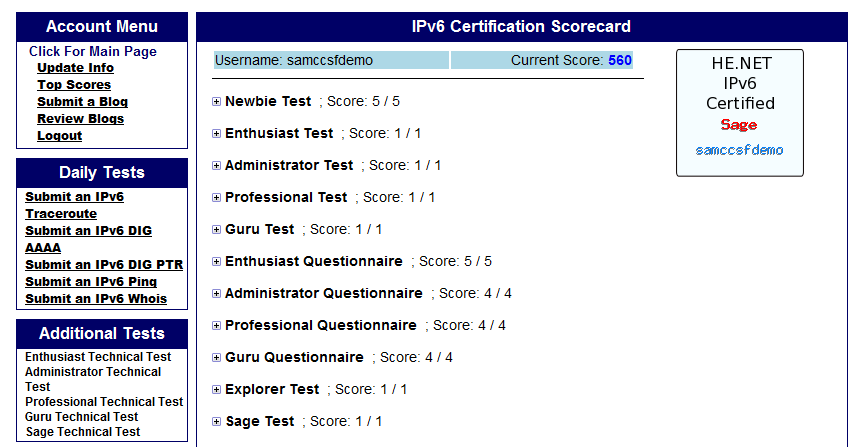

On the top left, click the "Click for main page" button. Your badge now shows that you are a Guru--Congratulations! Click your badge to show your score, as shown below on this page.

Calculating Your Points

To determine your CCSF points, divide the Hurricane Electric points by 10. If you have 560 points, as shown above on this page, you can get 56 points.

However, you can get a lot more points by taking the "Additional Tests" shown on the left side.

If you take them all, you can get up to 1000 Hurricane Electric points, as shown above on this page, which is worth 100 CCSF points. You can also get the IPv6 Guru T-Shirt by filling out the request form at Hurricane Electric.

Claiming Your Points

To claim your points, save a screen image showing your Administrator status and email it to cnit.60@gmail.com. Use a subject line of "IPv6 Cert Windows 2 from YOUR NAME".
