Yesman--Scanner Honeypot with scapy (NETLAB)

Purpose

This script acts as a simple honeypot. It answers every SYN with a SYN/ACK. That will make port scans useless, as every port appears open.

I think if you run the interface in promiscuous mode, this script will defend a whole network, answering every SYN no matter what IP address it is directed to.

In order to make this script practical, you will need to add code to stop responding to any IP address & port combination that you are actually using. Otherwise this script will DoS your own network.

Preparing the Scanner Machine

Open the client1 (Kali32) virtual machine. Log in as root with the password toor

Finding the IP Address of the Target Machine

Open the client2 (Kali64) virtual machine. Log in as root with the password toor

This is your Target Machine.

Use this command to find your Target IP address:

ifconfig

Your Target IP address should be 172.16.1.202.

Blocking ACK Packets on the Target Machine

As before, you must block ACK packets with iptables. Otherwise, Linux will cancel all the connections with RST packets.

On the Target Machine, open a Terminal window. In the Terminal window, execute this command:

iptables -L

If you see a rule in the OUTPUT section that drops RST packets, as shown below on this page, your firewall is correctly configured. If the rule is not there, execute this command to add it:

iptables -A OUTPUT -p tcp --tcp-flags RST RST -j DROP

Sniffing a Packet in scapy

On the Target machine, execute these commands:

scapy
sniff(count=1)

Scapy sniffs a packet and shows you a summary of what it captured, as shown below on this page.

If the colors are difficult to see, adjust them by clicking Edit, "Profile Preferences", Colors. I used "Black on light yellow".

Sniffing 100 Packets in scapy

On the Target machine, in scapy, execute this command:

p = sniff(count=100)

Scanning the Target

On your Scanner (Kali32) machine, execute this command:

nmap 172.16.1.202

The scan finds no open ports, as shown below.

Examining the Captured Packets

On the Target machine, in scapy, enter this command:

p

Scapy prints the summary line, showing how many packets were of each type, as shown below on this page. You should see a lot of TCP packets.

On the Target machine, in scapy, enter this command:

p[50:70].summary()

Scapy prints out a handy summary of 20 packets, as shown below on this page.

On the left side of each line the OSI model layer protocols are shown.

Layer 2: Every segment starts with Ether because we are using an Ethernet network interface, so no other layer 2 protocol can be received. And, of course, no one is sending anything else onto your LAN these days anyway.

Layer 3: Most of the packets are IP, but you may see some ARP packets as well.

Layer 4: Here you will see more variety, including TCP, UDP, and ICMP.

Find a TCP packet. In the figure below, the first packet shown, p[50], is a TCP packet.

Look at the right side of the line summarizing your TCP packet. It shows "S / Padding". The S means it's a SYN packet. To proceed, you need to find a TCP SYN packet to examine.

If you don't have any TCP SYN packets, try looking at the next 20 packets with p[70:90].summary()

If that fails, just repeat the capture process and run the Nmap scan again.

Examining a TCP Packet

Execute these commands, replacing [50] with the number of a TCP SYN packet that you captured:

p[50]
p[50].dst

Explanation:

p[50] shows the whole frame, with all the layers, as shown below on this page.

p[50].dst shows the layer 2 destination address, (a MAC address), also shown below on this page.

You can separate the layers easily. Execute these commands, replacing [50] with the number of a TCP SYN packet that you captured:

p[50][Ether] p[50][IP]
p[50][TCP]

Explanation:

p[50][Ether] shows the layer 2 frame and its contents, which include all higher layers, as shown below on this page.

p[50][IP] shows the layer 3 packet and its contents, which include all higher layers, as shown below on this page.

p[50][TCP] shows the layer 4 segment, as shown below on this page.

Now let's look at the values in the TCP segment.

Execute these commands, replacing [50] with the number of a TCP SYN packet that you captured:

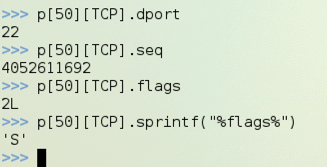

p[50][TCP].dport p[50][TCP].seq p[50][TCP].flags p[50][TCP].sprintf("%flags%")

Explanation:

p[50][TCP].dport shows the TCP destination port of the captured packet, as shown below on this page.

p[50][TCP].seq shows the TCP sequence number of the captured packet, as shown below on this page.

p[50][TCP].flags should show the flags, but they show up as 2L, because the "flags" field has a non-printable data type.

p[50][TCP].sprintf("%flags%") prints the flags into a string variable, which is now printable, as shown below on this page. My packet was a SYN packet, so the value is 'S'.

Exiting scapy

Now we want to write a script, so we'll exit scapy's interactive mode.

In scapy, execute this command:

exit()

Creating the yesman.py script

"yesman" will just answer every SYN packet with a SYN/ACK. This will confuse port scanners, and make every port appear to be open.

On the Target machine, in a Terminal window, execute this command:

nano yesman

In the nano window, type this script. Be careful to keep the indentation consistent -- whitespace matters in Python!


#!/usr/bin/env python
import sys
from scapy.all import *

def findSYN(p):
        flags = p.sprintf("%TCP.flags%")
        if flags == "S":        # Only respond to SYN Packets
                ip = p[IP]      # Received IP Packet
                tcp = p[TCP]    # Received TCP Segment
                i = IP()        # Outgoing IP Packet
                i.dst = ip.src
                i.src = ip.dst
                t = TCP()       # Outgoing TCP Segment
                t.flags = "SA"
                t.dport = tcp.sport
                t.sport = tcp.dport
                t.seq = tcp.ack
                new_ack = tcp.seq + 1
                print "SYN/ACK sent to ",i.dst,":",t.dport
                send(i/t)

sniff(prn=findSYN)

Here is an image of the script, excluding the comments:
