PMA 131: Custom UPX (15 pts extra)

What you need

Purpose

To compile the UPX packer locally, so you can dynamically analyze it by modifying it.

Use Ubuntu 18.04 Desktop

I was not able to do this on any other OS. I don't recommend wasting your time trying.

Install Dependencies

In your Ubuntu 18.04 desktop machine, in a Terminal and execute these commands, one at a time. You will often need to answer a question. Watch carefully for error messages.
sudo apt update
sudo apt install gcc make zlib1g zlib1g-dev zlib1g:i386
sudo apt install python build-essential
export "CC=gcc -std=gnu89"
sudo ln -s /usr/lib/x86_64-linux-gnu/libmpfr.so.6 /usr/lib/x86_64-linux-gnu/libmpfr.so.4

Downloading and Extracting UPX

Execute these commands:
cd /tmp
wget https://github.com/upx/upx/archive/master.zip
cd
unzip /tmp/master.zip

Downloading, Extracting, and Building UCL

Execute these commands:
cd /tmp
wget http://www.oberhumer.com/opensource/ucl/download/ucl-1.03.tar.gz
cd
mkdir -p local/src
cd local/src
tar xzfv /tmp/ucl-1.03.tar.gz
cd ucl-1.03
./configure "CC=gcc -std=gnu89"
make all
export UPX_UCLDIR=$HOME/local/src/ucl-1.03

Downloading and Extracting LZMA SDK

Execute these commands:
cd /tmp
mkdir lzma
cd lzma
wget https://github.com/upx/upx-lzma-sdk/archive/master.zip
unzip master.zip
cd
cd upx-master/src
mv /tmp/lzma/upx-lzma-sdk-master/* lzma-sdk/

Downloading and Extracting Stub Sources

Execute these commands:
cd /tmp
wget https://github.com/upx/upx-stubtools/releases/download/v20160918/bin-upx-20160918.tar.xz
cd
cd local
mkdir bin
cd bin
tar xvf /tmp/bin-upx-20160918.tar.xz
mv bin-upx-20160918 bin-upx
cd
cd upx-master
cd src/stub/src
gedit i386-win32.pe.S

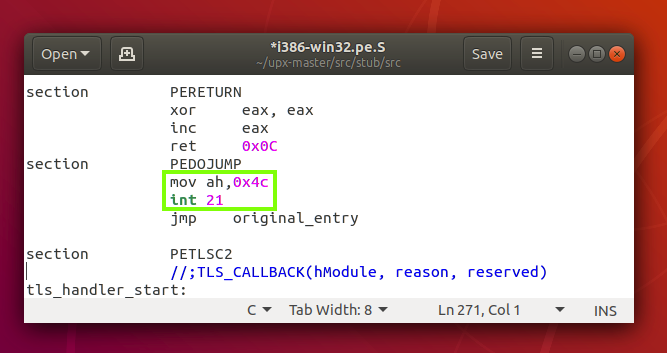

Add these two lines in the PEDOJUMP section, as shown below:
mov ah,0x4c
int 21

Save the file. Close gedit.

In the Terminal, execute these commands:

cd ..
make all

Build the UPX Executable

Execute these commands:
cd ../..
make all
src/upx.out

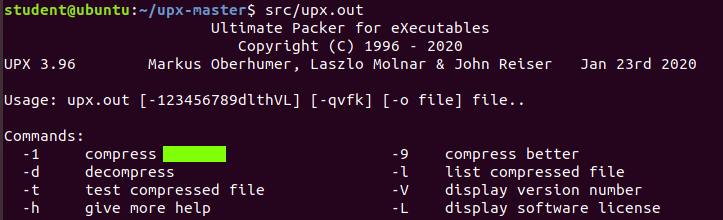

You see the UPX help message, as shown below.

PMA 131.1: Option 1 (10 pts)

Find the word covered by a green box in the image below.

That's the flag.

Sources

ON THE FEASIBILITY OF MALWARE UNPACKING WITH HARDWARE PERFORMANCE COUNTERS by JAY MAYANK PATEL (Appendix A)

Posted 9-17-2020
