http://sites.google.com/site/lupingreycorner/vulnserver.zip
If that link doesn't work, try this alterative download link.
Extract the files and double-click vulnserver. The Vulnserver application opens, as shown below.
http://debugger.immunityinc.com/ID_register.py
ipconfig
cd "c:\program files\nmap"
ncat -vklp 9000
Make a note of your Windows machine's IP
address.
The ncat command starts a persistent listener on port 9000, which will print out all the data sent to it.
We'll fuzz it, just to show how Spike works.
On your Kali 2 machine, in a Terminal window, execute this commands:
nano simple.spk
Enter this line into the script,
as shown below.
s_string("Hello, world!");
Save the file with Ctrl+X, Y, Enter. On your Kali 2 machine, in a Terminal window, execute this command, replacing the IP address with the IP address of your Windows machine.
generic_send_tcp 172.16.1.129 9000 simple.spk 0 0
Stop the fuzzer with Ctrl+C.
On your Windows machine, you see many lines with the same message, as shown below.
The s_string function sends a fixed string. The TCP parameters are being modified, not the layer 7 payload.
On your Kali 2 machine, in a Terminal window, execute this commands:
nano simple2.spk
Enter this line into the script,
as shown below.
s_string_variable("Hello, world!");
Save the file with Ctrl+X, Y, Enter. On your Kali 2 machine, in a Terminal window, execute this command, replacing the IP address with the IP address of your Windows machine.
generic_send_tcp 172.16.1.129 9000 simple2.spk 0 0
Stop the fuzzer with Ctrl+C.
On your Windows machine, only the first message was "Hello World!". All the later ones are sensible fuzzing patterns, such as hundreds of 'A' characters, punctuation marks, etc., as shown below.
We could let this run, trying to find a bug in Ncat, but that's not likely to work because Ncat is a modern, updated program, maintained by competent, security-aware programmers.
nc 172.16.1.129 9999
HELP
You see a list of the commands
available,
as shown below.
In Kali, execute this command to disconnect from Vulnerable Server:
EXIT
nano trun.spk
Enter these lines into the script,
as shown below.
s_readline();
s_string("TRUN ");
s_string_variable("COMMAND");
The "readline" function reads the welcome message from the server.
The "s.string" function sends fixed text of "TRUN ".
The "s_string_variable" function sends varied text, intended to cause a crash.
Save the file with Ctrl+X, Y, Enter. On your Kali 2 machine, in a Terminal window, execute this command, replacing the IP address with the IP address of your Windows machine.
generic_send_tcp 172.16.1.129 9999 trun.spk 0 0
Stop the fuzzer with Ctrl+C.
On your Windows machine, the server should crash within a second or two, as shown below.
From the Immunity menu bar, click File, Open. Navigate to vulnserver.exe and open it.
From the Immunity menu bar, click Debug, Run. The lower right of the window should show Running, as shown below.
On your Kali 2 machine, in a Terminal window, execute this command, replacing the IP address with the IP address of your Windows machine.
generic_send_tcp 172.16.1.129 9999 trun.spk 0 0
After a few seconds,
stop the fuzzer with Ctrl+C.
On your Windows machine, the server should crash within a second or two, showing "Access violation when executing [41414141]", as shown below.
On your Kali machine, you can see that several messages were sent to Vulnserver, as shown below.
There is no immediate way to tell which message caused the crash.
wireshark
If one or two
"Lua: Error" boxes appear, warning that you
shouldn't run Wireshark as root, click OK.
In the interface list, double-click eth0.
A box pops up warning that we are about to terminate the old, crashed, 'vulnserver' process. Click Yes.
From the Immunity menu bar, click Debug, Run.
generic_send_tcp 172.16.1.129 9999 trun.spk 0 0
After a few seconds,
stop the fuzzer with Ctrl+C.
On your Windows machine, the server should crash within a second or two, showing "Access violation when executing [41414141]", as shown below.
In your Kali linux machine, in Wireshark, click Capture, Stop.
In the Filter bar, type this text, and press Enter:
tcp.port==9999
In the top pane of Wireshark,
find the first SYN packet
and right-click it. Click
"Follow TCP Stream",
as shown below.
The layer 7 conversation appears, as shown below.
The blue text came from the Windows server, and the red text was sent from Kali client.

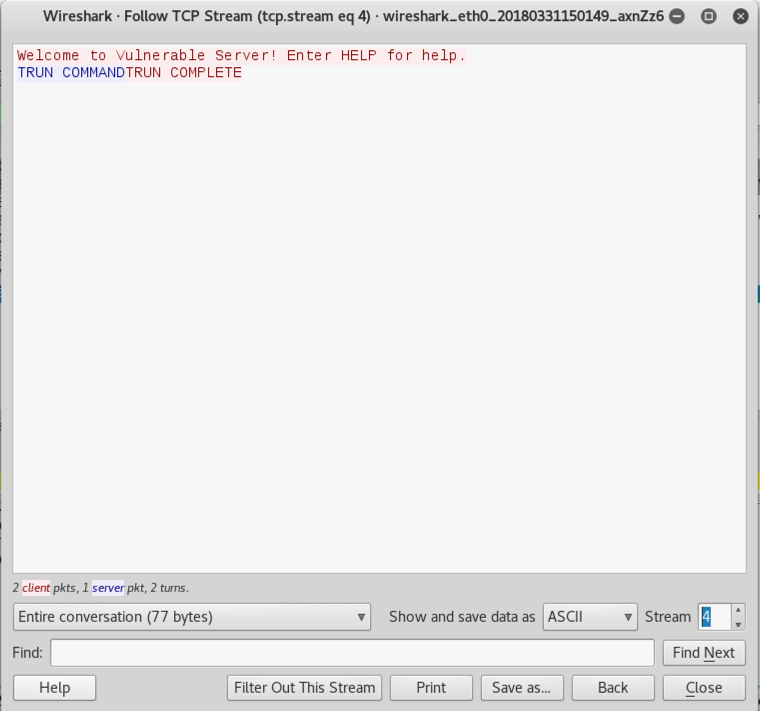

The first message was "TRUN COMMAND", and it didn't cause a crash, so the server replied "TRUN COMPLETE", as shown below.
In the lower right corner of the "Follow TCP Stream" box, find the "Stream" number and click the top arrow next to it to go to the next stream.

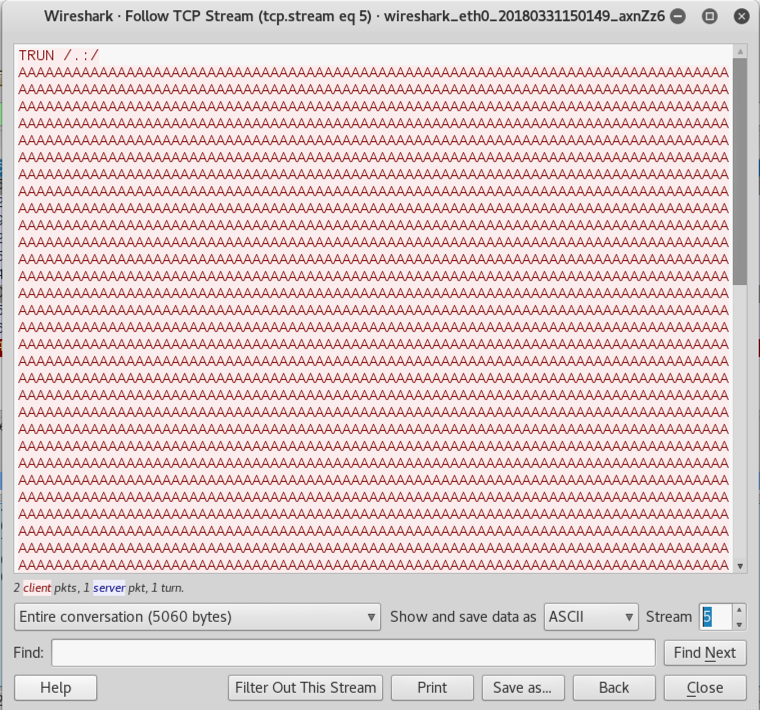

You should see the second message sent by Spike, with a lot of 'A' characters, as shown below.
If you do not, try increasing the "Stream" number a few more times.

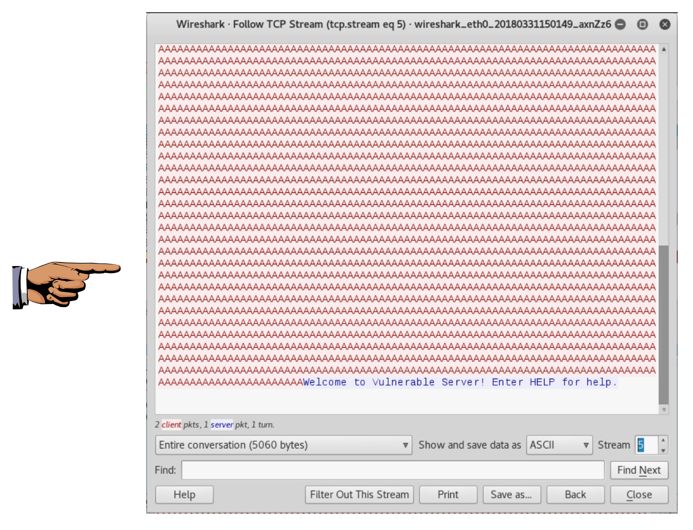

Scroll to the bottom to see the server's reply. The server crashed--it did not reply with a blue "TRUN COMPLETE" message, as shown below.
Save a whole-desktop screen capture with a filename of "Proj 16a from YOUR NAME".
In the "Follow TCP Stream" box, click Close.
Spike makes it easy to resume a fuzzing series partway through, The messags are always sent in the same order, and the two parameters at the end of the command are the variable to fuzz, and which message to start at.
As shown below, the second message Spike sent is described this way:
Fuzzing Variable 0:1
Variablesize= 5004
This means Spike changed the first variable
to something 5004 bytes long.
The third message is one byte longer, also full of 'A' characters, so let's skip that one, which will almost certainly cause the same crash as message "0:1".
To resume fuzzing after this message we need to start at 0:3.
A box pops up warning that we are about to terminate the old, crashed, 'vulnserver' process. Click Yes.
From the Immunity menu bar, click Debug, Run.
tcp.port==9999
From the Wireshark menu bar,
click Capture, Start.
Click "Continue Without Saving".
generic_send_tcp 172.16.1.129 9999 trun.spk 0 3
Let the fuzzer run until it causes Vulnserver
to crash again, as shown below.
On your Windows machine, Immunity shows the message "Access violation when executing [2f2e2f2e]", as shown below.
This crash is similar to the first one--Spike sent a series of "/." characters and they ended up in EIP.
Save a whole-desktop screen capture with a filename of "Proj 16b from YOUR NAME".
In the Filter bar, type this text, and press Enter:
frame contains COMPLETE
A list of packets appear. These are the
packets that contain
"TRUM COMPLETE", so they are the messages
that did not crash the server.

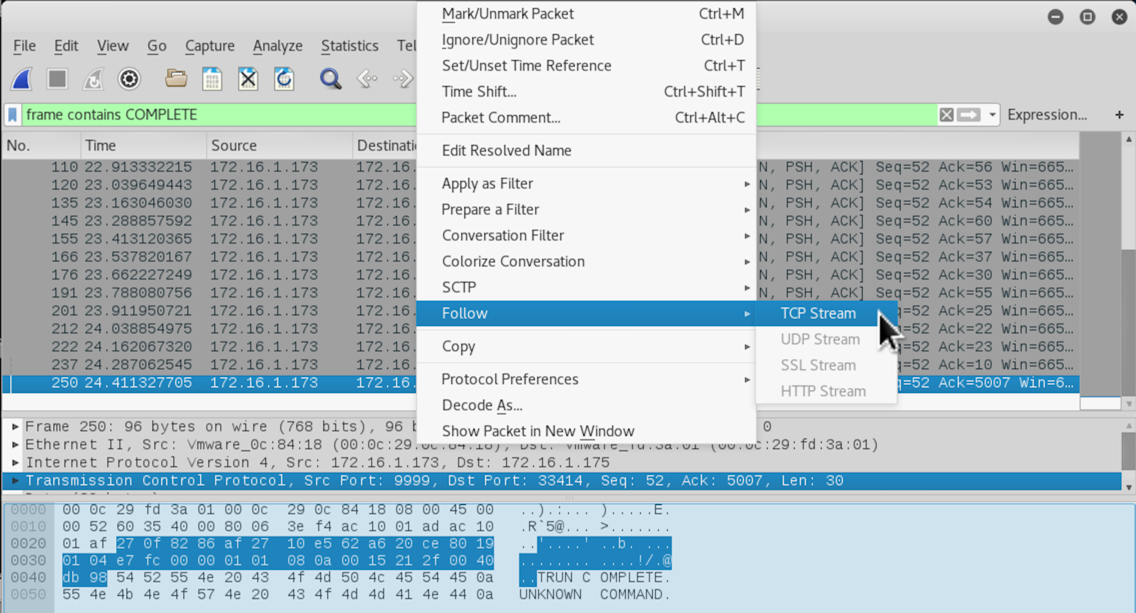

Scroll to the bottom, right-click the last visible packet and click Follow, "TCP Stream", as shown below.

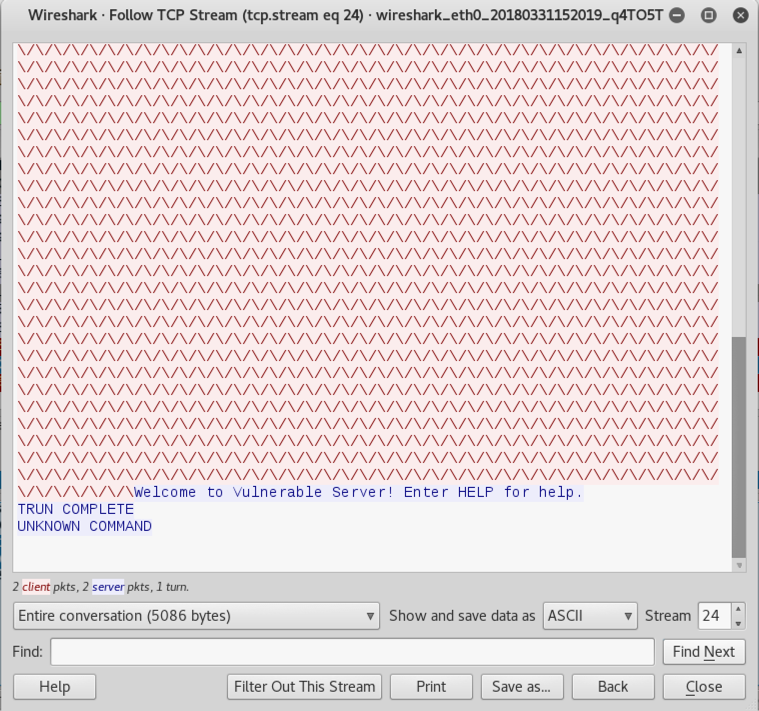

Scroll to the bottom of the "Follow TCP Stream" box to see the "TRUN COMPLETE" message, as shown below.
This was the last message that did not crash the server.
In the lower right corner of the "Follow TCP Stream" box, find the "Stream" number and click the top arrow next to it to go to the next stream.
You should see a long series of "/." characters, as shown below.
If you do not, try increasing the "Stream" number a few more times. Scroll to the bottom of the window, so you can see that there is no blue "TRUN COMPLETE" message because the server crashed.
Save a whole-desktop screen capture with a filename of "Proj 16c from YOUR NAME".
Email the images to cnit.127sam@gmail.com with a subject of "Project 16 from YOUR NAME".
