Project 6x: Obfuscating Android Source Code with DashO (15 pts. extra credit)

What You Need for This Project

Purpose

It's easy to extract readable Smali code from APK files and reverse-engineer them. The ProGuard obfuscator included in Android Studio is extremely ineffective, leaving large parts of the code still readable.

This project uses a far more powerful obfuscator named DashO. It's a commercial product, but there's a 15-day free trial :).

Finding your App Folder

Open Android Studio. Open a version of the ExploitMe Mobile app.

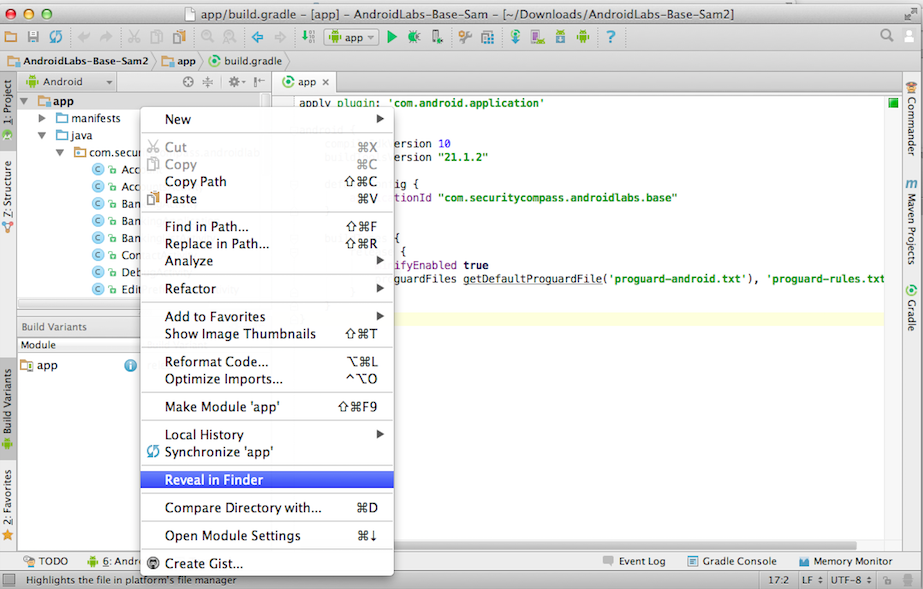

In the top left pane, right-click app and click "Reveal in Finder", as shown below.

(On a PC, I suppose the name of this item will be different.)

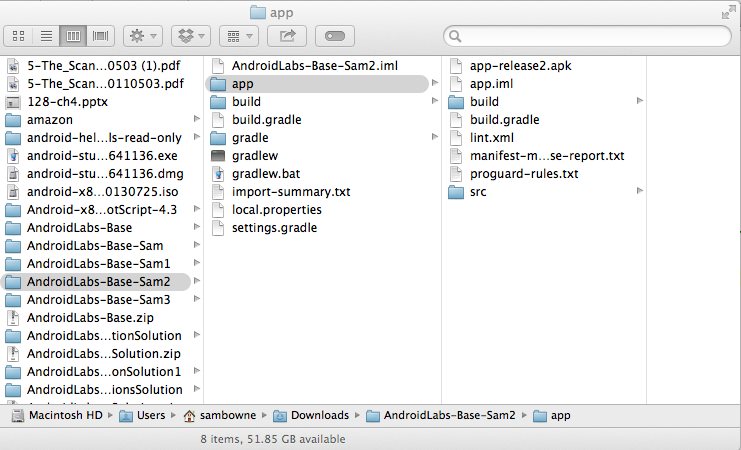

The "app" folder appears, as shown below.

Notice that this folder also contains these items:

Make a note of the path to this folder. You will need it later.

Building the App

In the left pane of Android Studio, click app.

Click Build, "Make Module 'app".

Downloading DashO

In a Web browser, go to

https://www.preemptive.com/products/dasho

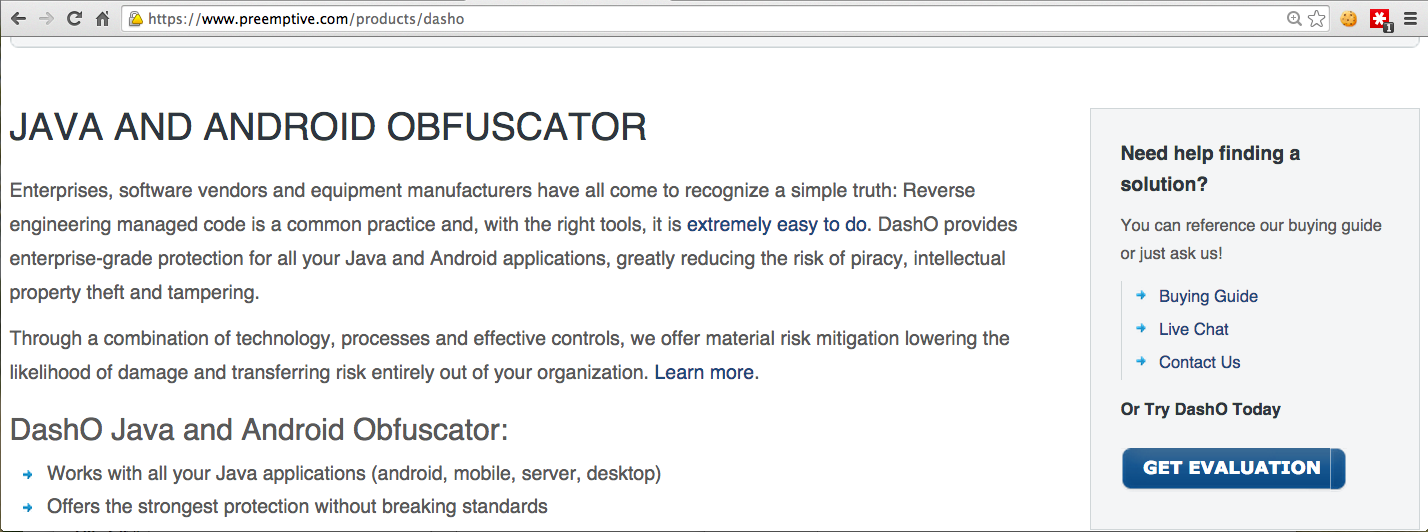

On the right side, click "GET EVALUATION", as shown below.

You will need to Register an account and log in. Then click Downloads and click Evaluations.

On the left side, in the "DashO Professional for Java" section, click "DOWNLOAD JAR".

Double-click the DashOProEval_7.5.1_setup.jar file.

Install the software with the default options.

On a Mac, open Applications. Open the DashO folder. Double-click "DashO Pro.jar".

On a PC, I assume clicking Start and typing DASHO will lead you to the correct file.

Agree to the agreement.

It asks for a serial number. Check your email for a message titled "Thank you for evaluating PreEmptive Solutions". The serial number should be in it.

Making a New DashO Project

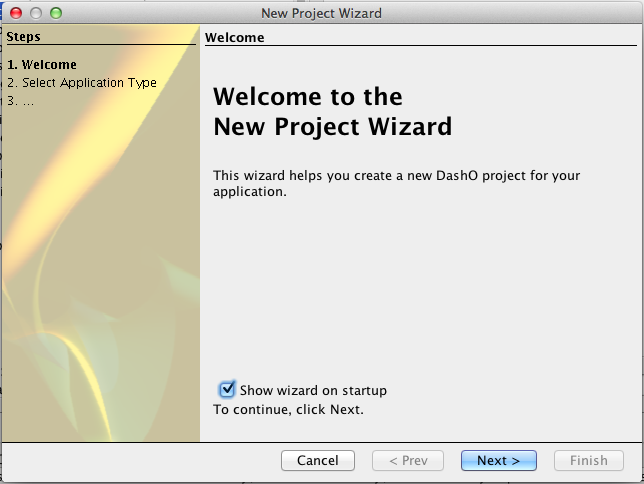

When DashO opens, the "New Project Wizard" should start, as shown below.

If it does not, click File, "New Project", Wizard.

In the "Welcome to the New Project Wizard" page, click Next.

In the "Select Application Type" page, click "An Android application" and click Next.

In the "Select Android Project" page, accept the default build environment of Gradle.

Click the Browse... button and navigate to the folder containing your app, which you located earlier in these instructions.

Open the app folder.

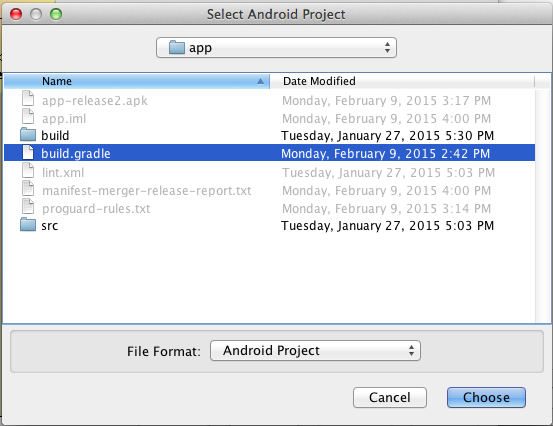

Click the build.gradle file, as shown below.

Click Choose.

In the "Select Android Project" page, click Next.

In the "Add Jars" page, click Next.

In the "Select Entry Points" page, click Next.

In the "Summary" page, click Finish.

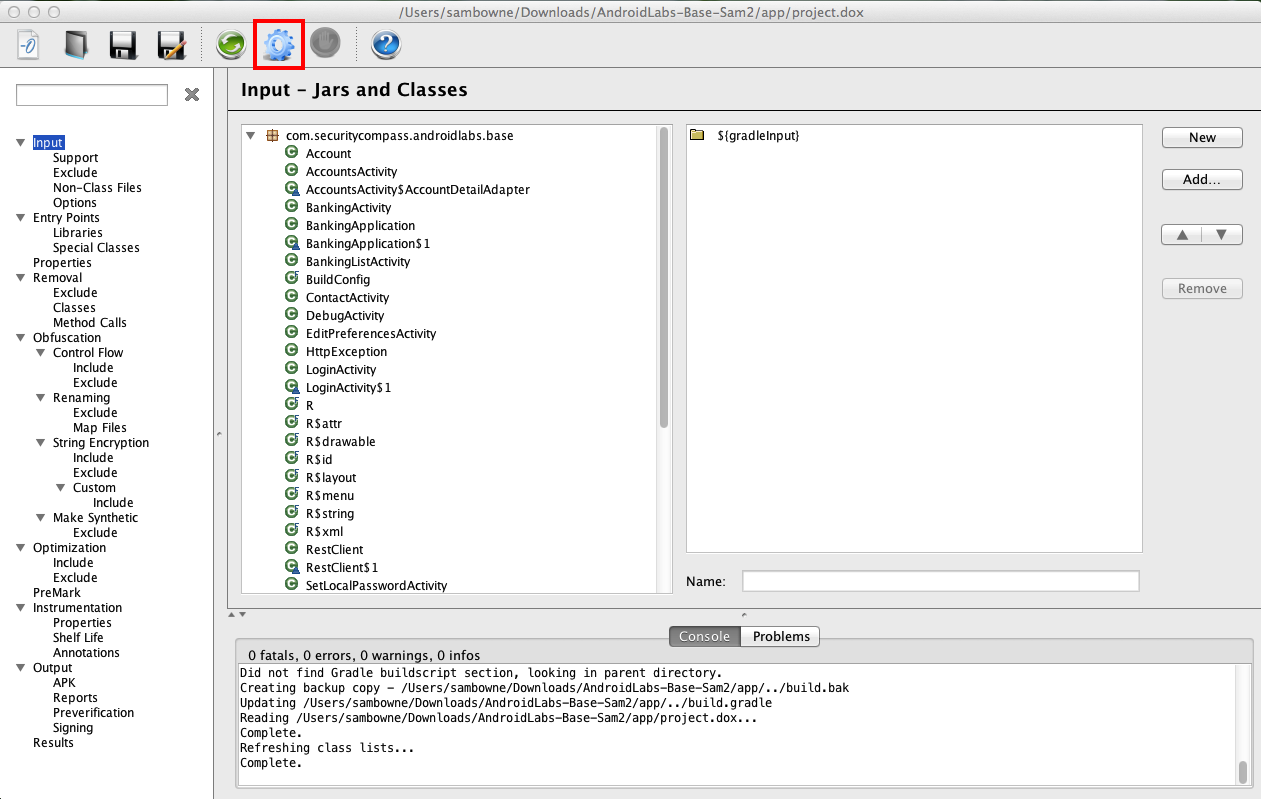

The project opens in DashO, as shown below.

At the top of the window, click the gear icon, outlined in red in the image below.

A box pops up warning you that the obfuscated output will not run after a date 30 days in the future. Click OK to close it.

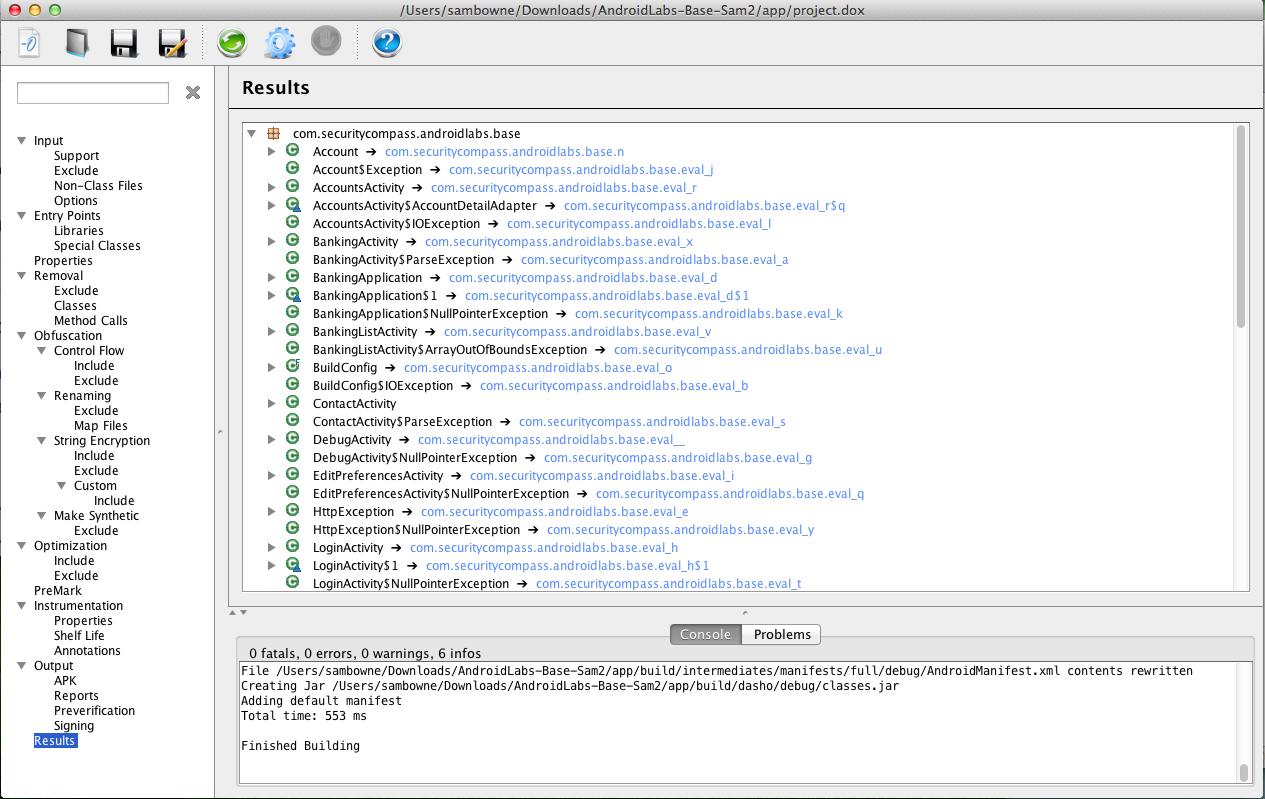

The top right pane shows the Results: DashO has renamed all the methods, as shown below.

Rebuilding the App

In the left pane of Android Studio, click app.

Click Build, "Make Module 'app'".

Creating the APK

Click Build, "Generate Signed APK".

In the "Generate Signed APK Wizard" page, click Next.

In the next page, click "Choose existing..." and navigate to the key you created previously. Fill in the key alias and password, as shown below, and click Next.

Click Finish.

A box pops up saying "Signed APK's generated successfully".

Finding the APK

From the App folder, open these subfolders: You should see a file named "app-release-unaligned.apk", as shown below.

Decompiling the APK

Copy this APK file to a convenient folder to work in, close to your apktool file.

My apktool file is in my Downloads folder, so I made a subfolder there named p6x to put the APK file in.

In a Terminal or Command Prompt window, navigate to the folder containing the APK file.

Execute this command:

java -jar ../apktool_2.0.0rc3.jar d app-release-unaligned.apk

Viewing the Decompiled Smali Files

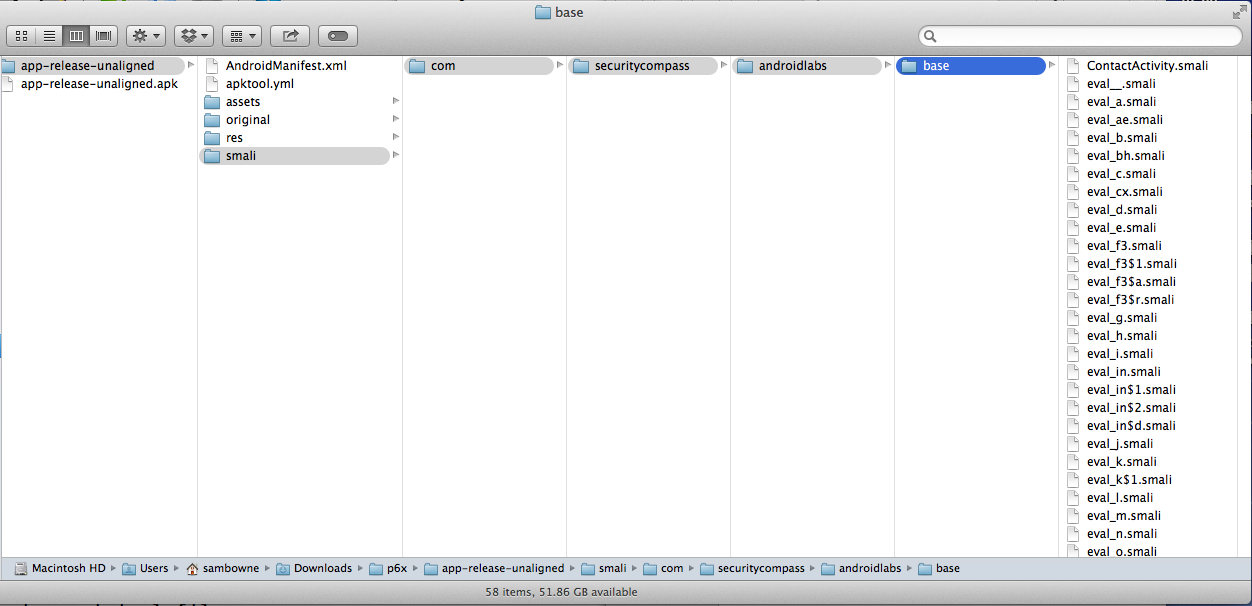

Open Finder or Windows Explorer. Navigate to the decompiled Smali files, as shown below.

As you can see, almost all the filenames are now meaningless.

Look through the files and find one that is at least 2 KB in size. Open that file in a text editor.

When I did it, the eval_bh.smali file was 4 KB.

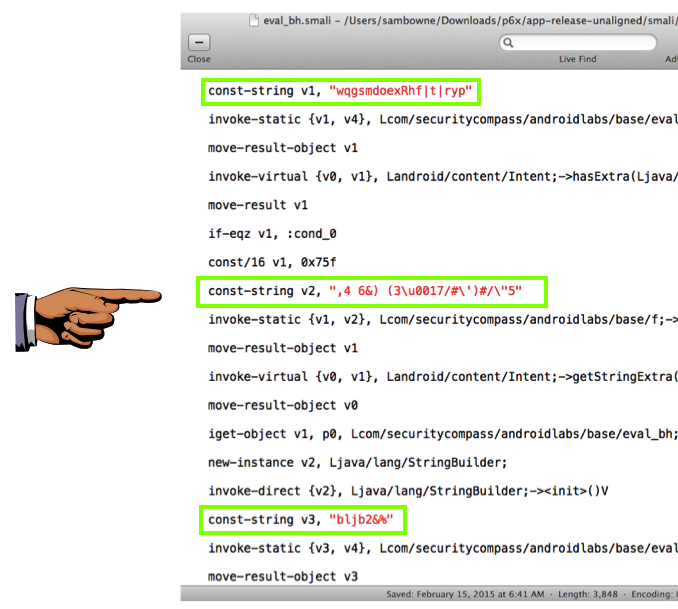

You should see "const-string" values which have been converted to unreadable ciphertext, as shown below.

Saving a Screen Image

Make sure you can see at least one "const-string" value containing unreadable ciphertext, as shown above.

Save a full-desktop image. On a Mac, press Commmand+3. On a PC, press Shift+PrntScrn and paste into Paint.

YOU MUST SUBMIT A FULL-SCREEN IMAGE FOR FULL CREDIT!

Save the image with the filename "YOUR NAME Proj 6x", replacing "YOUR NAME" with your real name.

Testing the Obfuscation with grep

In a Terminal or Command Prompt window, navigate to the "smali" folder containing the decompiled files. Execute this command:

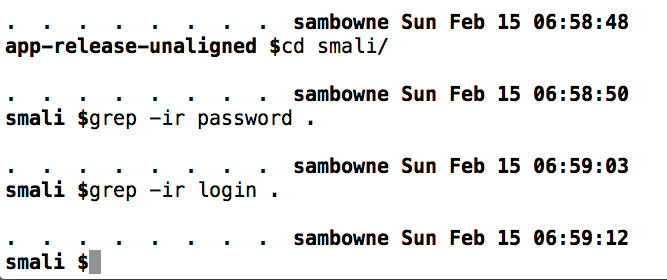

grep -ir password .
There are no longer any readable strings containing "password" as shown below.

Functionality Test

Try dragging the APK file into an emulator. It installs and works as it should.

Turning in your Project

Email the images to to cnit.128sam@gmail.com with the subject line: Proj 6x from YOUR NAME
